YD-TD9008-DT wireless broadband transmission radio adopts industrial-grade wireless high-speed data transmission technology, non-line-of-sight, non-wifi, set orthogonal frequency division multiplexing TDMA and MIMO multi-input and multiple-output capacity technology, completely based on IP Internet protocol, to achieve full bidirectional transparent channel broadband transmission. Non-visual distance: 300-900 meters; Ground visual distance: 2-18 km. The system is pure hardware connection, plug and play; Innovative LCD integrated design, rich CAN bus, RS-485, TTL level interface, better user perspective experience. The channel supports a maximum of 30Mbps of swallowing and spitting, and can be widely used in industrial automation, industrial robots, drones and other communication work.

1, the transmission and reception are equipped with LCD display, you can change the parameters and Settings at any time
2, YUOUT advanced encryption, custom Settings, in addition to the user, no one will crack the password, very safe

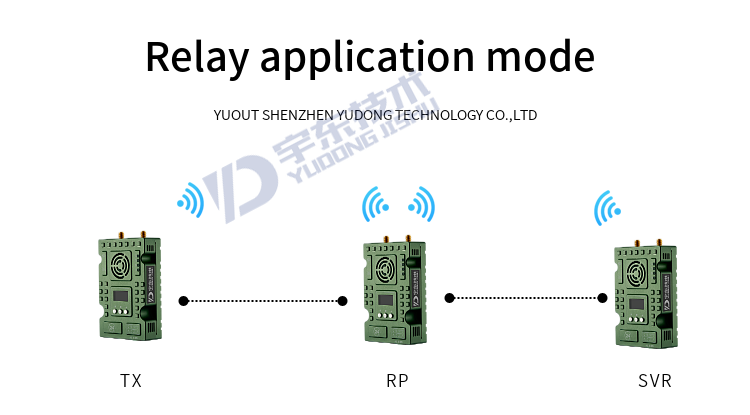

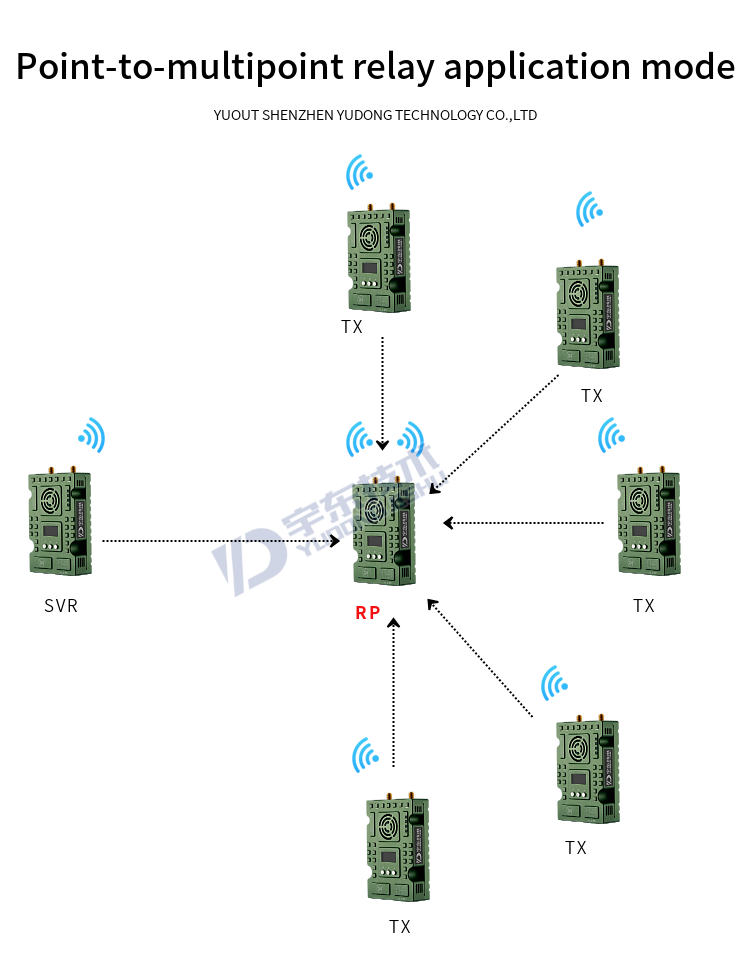

3, AD hoc network and relay model test, or back-to-back mode, free collocation

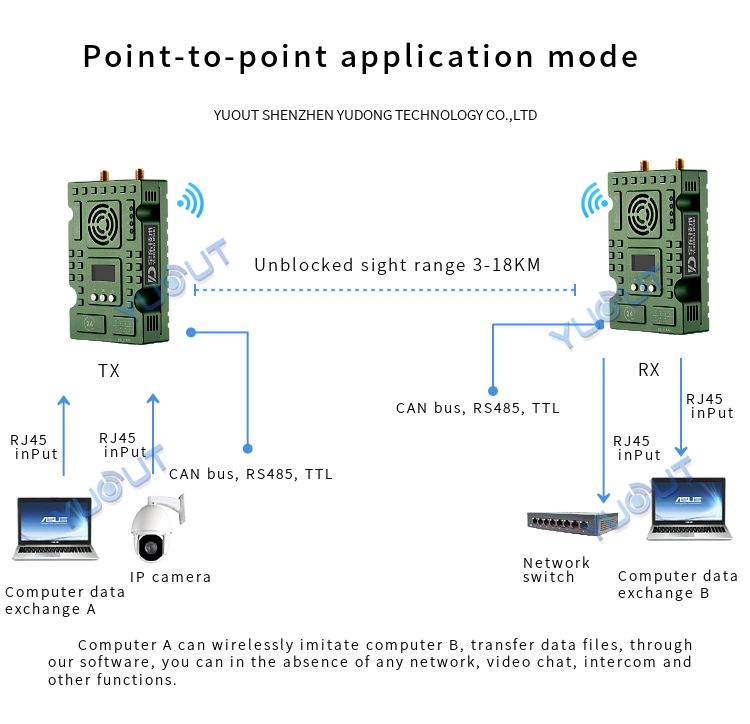

4, designed UART, CAN, RS485 interface can be used, data transparent communication, can also do secondary development
5, plug and play, transmission and reception with signal connection indicator light, easy to identify whether the signal is normally connected
6, 30M bandwidth, or simultaneous transmission of multiple video or surveillance.
7, the system coding delay <50MS frequency bandwidth: 1.4MHz\3MHz\5MHz\10MHz\15MHz\20MHz LCD can be set
8, transmission distance, non-visual distance: 300-900 meters ground visual distance: 3000-18000 meters air-to-ground: 20000 meters
9, built-in three wireless frequencies: 800MHz, 1.4GHz, 2.4GHz LCD can be set
10, CAN bus interface ×1 (MAX 1Mbps), RS-485 interface ×1 (MAX 115200bps), TTL level interface ×1 (MAX 115200bps)

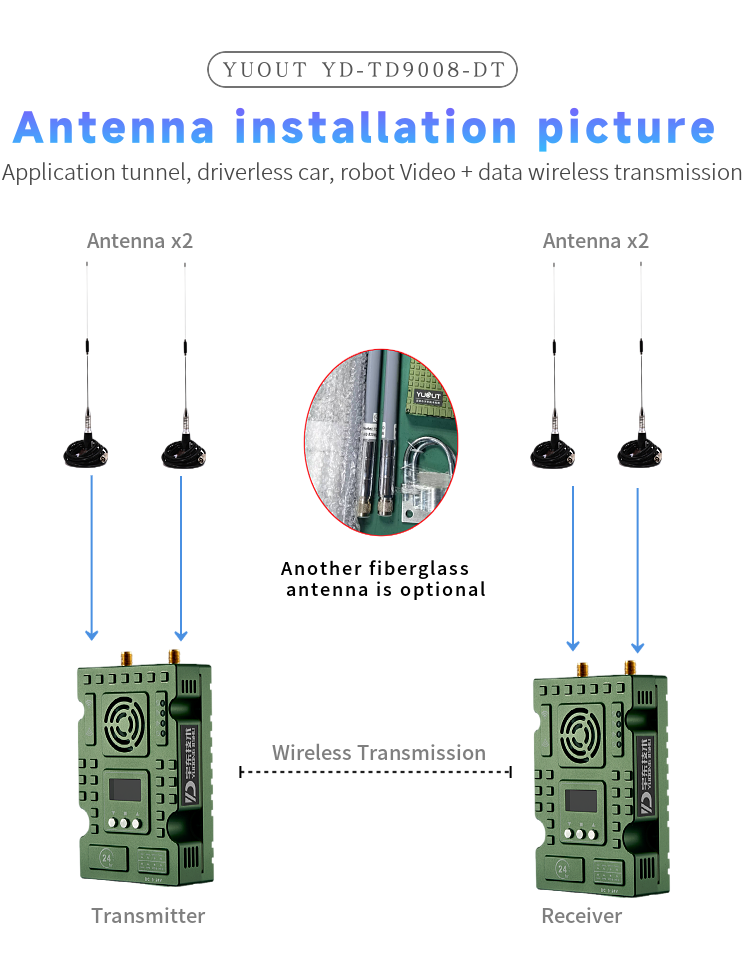

11, antenna mode: 1T2R dual antenna external two-way transmission, that is, can be transmitted, can also be received, flexible setting

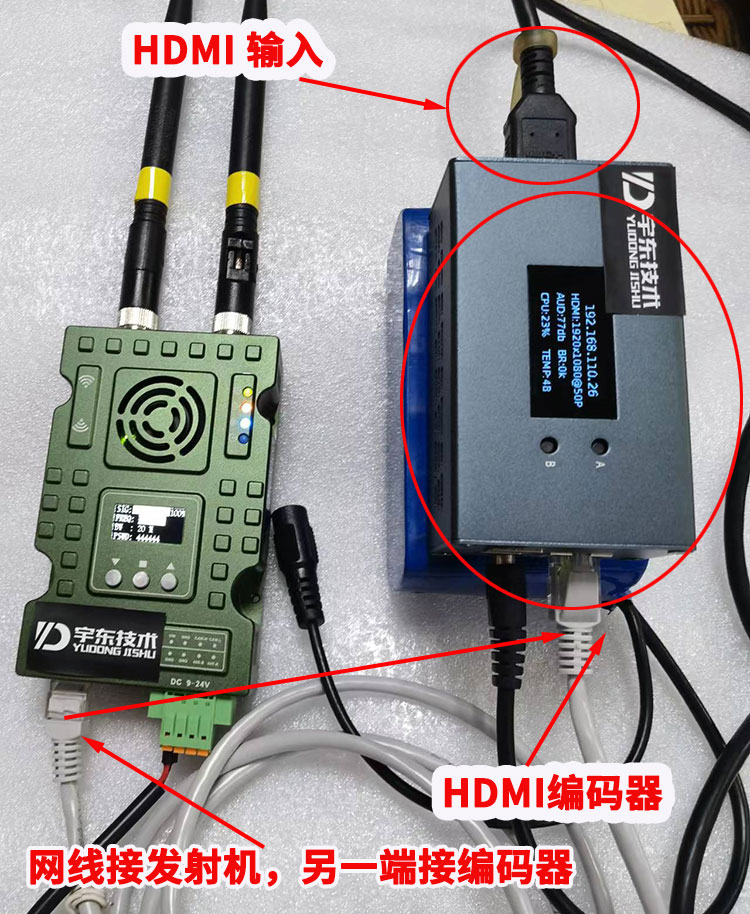

12, Ethernet: RJ45×2 (external with locking light MAX 30Mbps) Built-in RJ45×1

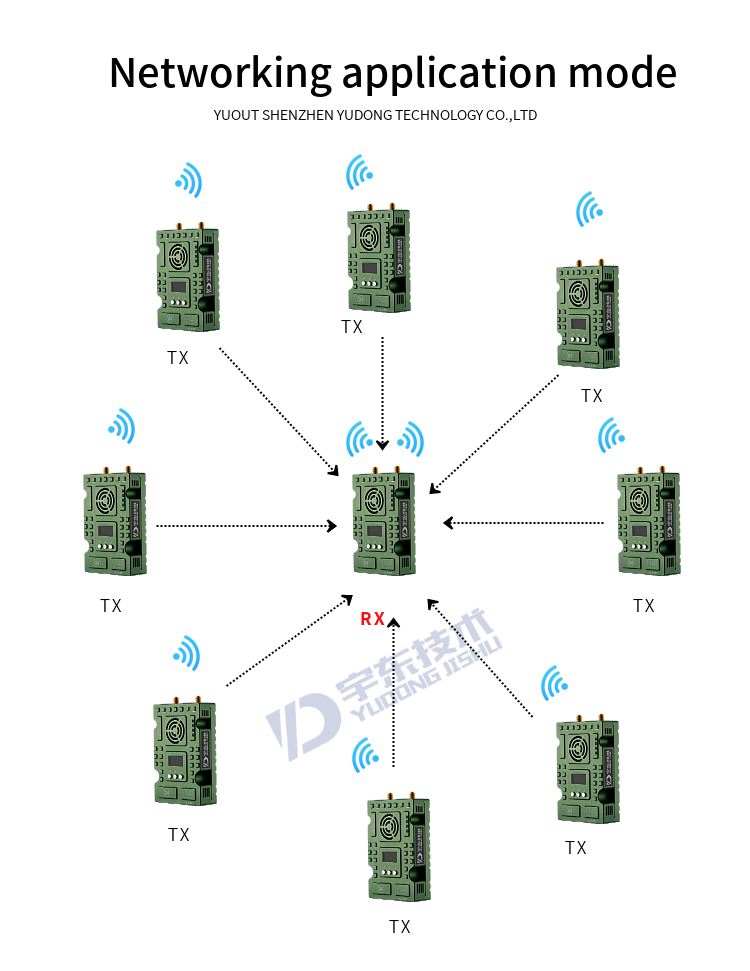

13, Support one more collection, multiple collection, trunk mode.
